Capillary thermostat KR XX.NN
Description
Capillary thermostat KR is a single-pole temperature regulator based on the principle of liquid dilatation. It consists from two basic parts: switching unit and capillary temperature sensor. The switching unit ensures micro-disconnection of phase wire. Thermostat is manufactured as circuit-opening type with or without signallingterminal that can signalize micro-disconnection of electrical load. Thermostat is intended to single-phase appliances for household and similar applications the norm ČSN EN 60335-1 is valid for.Usage for another purposes must be consulted with manufacturer. Thermostat is not intended for disconnection of electrical appliance from electrical network.
Advantages
- variable location of temperature sensor in relation to position of switching unit
- switching unit can be installed in any position
- capillary can be bent according to installation need
- no consumption of electrical power
- low operating and servicing costs
Technical data
Meaning of type labelling|
KR
|
X
|
X
|
NN
|
|
||
|
X
|
|
1
2
|
operating range
from 0÷15 °C to 20÷90 °C
from 20÷45 °C to 90÷99 °C
|
|||
|
X
|
0
1
|
without signalling terminal
with signalling terminal
|
||||
|
NN
|
labelling of special design according to negotiated technical conditions
|
|
Type
|
KR 10 (KR 11)
|
KR 20 (KR 21)
|

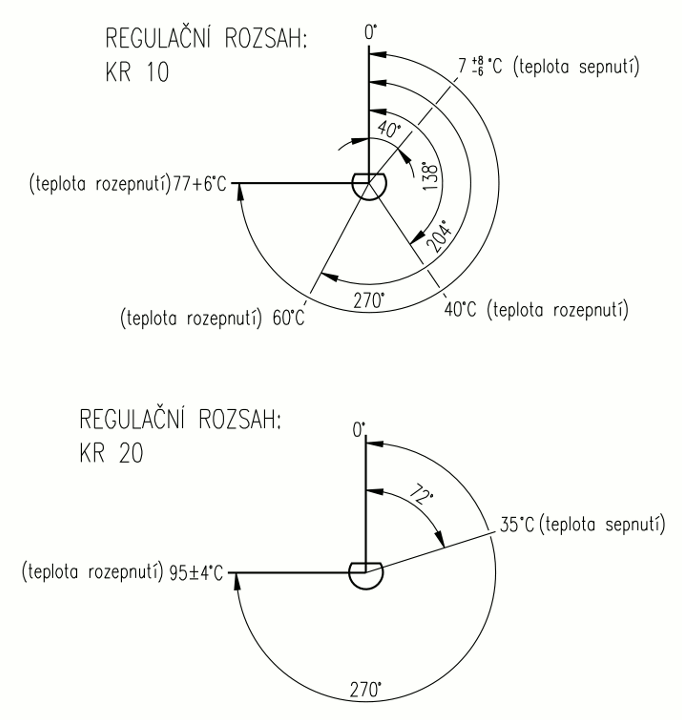

| Control range |
(7÷77) °C
|
(35÷95) °C
|
| Variation of max. cutout temperature |
±6°C
|
±4°C
|
| Switching difference |
2÷6 K
|
2÷6 K
|
| Rated current |
16/10 A
|
16/10 A
|
| Rated current of signalling circuit |
2 A
|
2 A
|
| Minimal current |
2 A
|
2 A
|
| Type of load |
0,95 φ
|
0,95 φ
|
| Rated voltage |
240/400 V ~
|
240/400 V ~
|
| Temperature range (switching unit) |
0÷90°C
|
0÷90°C
|
| Max. temperature (sensor) |
90°C
|
110°C
|
| Protection |
IP 00
|
IP 00
|
| Protection class |
I
|
I
|
| Lifetime |
100.000 working cycles
|
100.000 working cycles
|
| Automatic type operation |
2 BL
|
2 BL
|
| Capillary length | 500, 1 000 mm | 500, 1 000 mm |
| Min. radius of capillary bend |
5 mm
|
5 mm
|
| Connecting terminals |
flat pins 6,3 x 0,8 in accordance with ČSN EN 61210
|
flat pins 6,3 x 0,8 in accordance with ČSN EN 61210
|

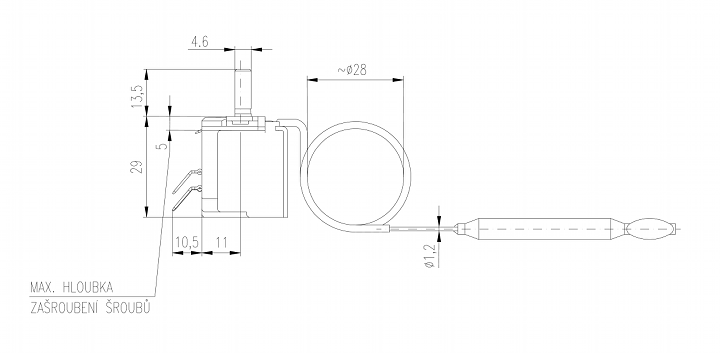

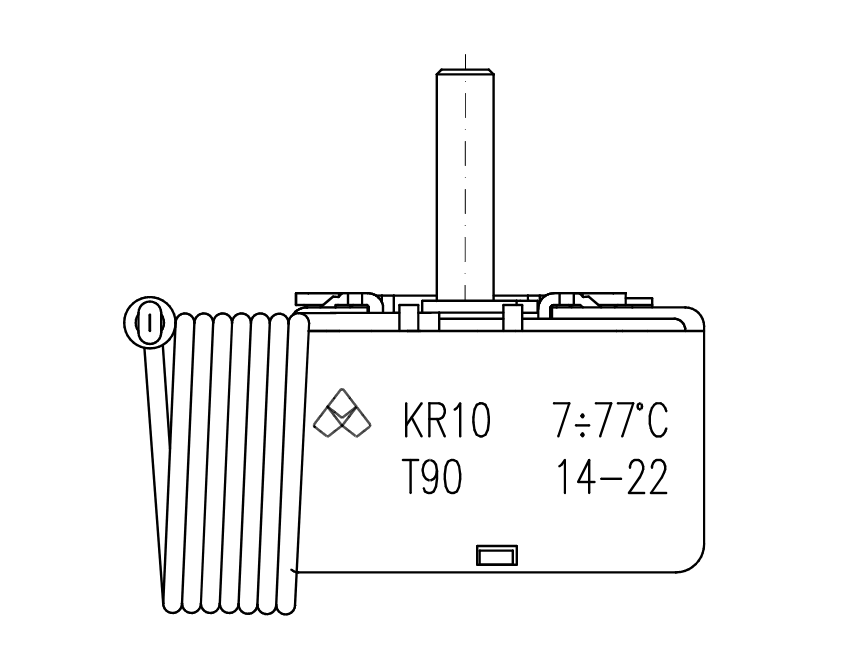

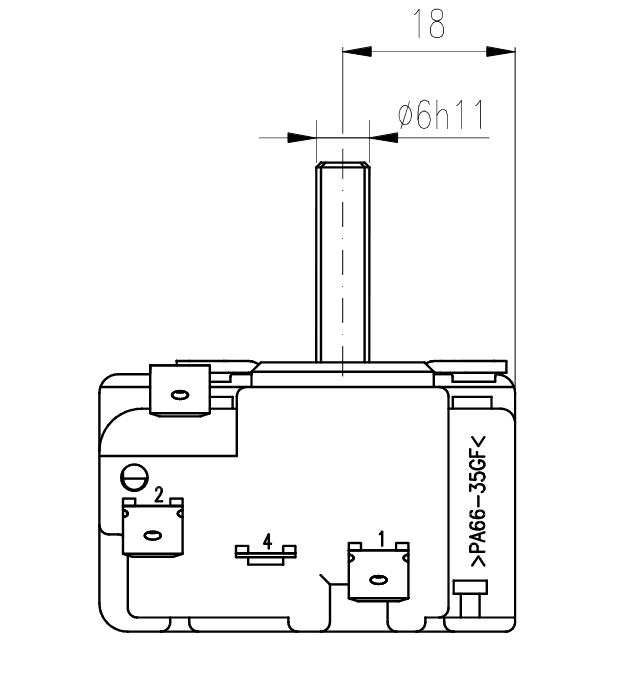

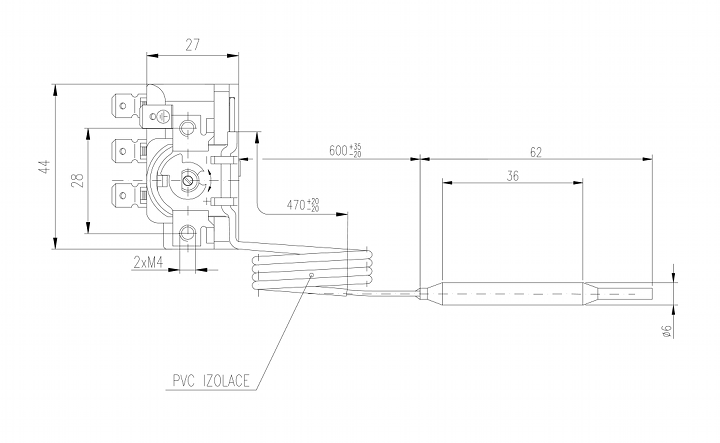

Dimensional drawings
Photos of the product
