Capillary thermostat RT 8803
Description
Capillary thermostat RT is a single-pole temperature regulator based on the principle of liquid dilatation. It consists from two basic parts: switching unit and capillary temperature sensor. There is a protective earht pin on the cover. Regulated temperature can be user set in control range. RT can be also used as anti-frost fuse. Installation is made by two M4 screws.
Advantages
- variable location of temperature sensor in relation to position of switching unit
- switching unit can be installed in any position
- capillary can be bent according to installation need
- no consumption of electrical power
- low operating and servicing costs
Technical data

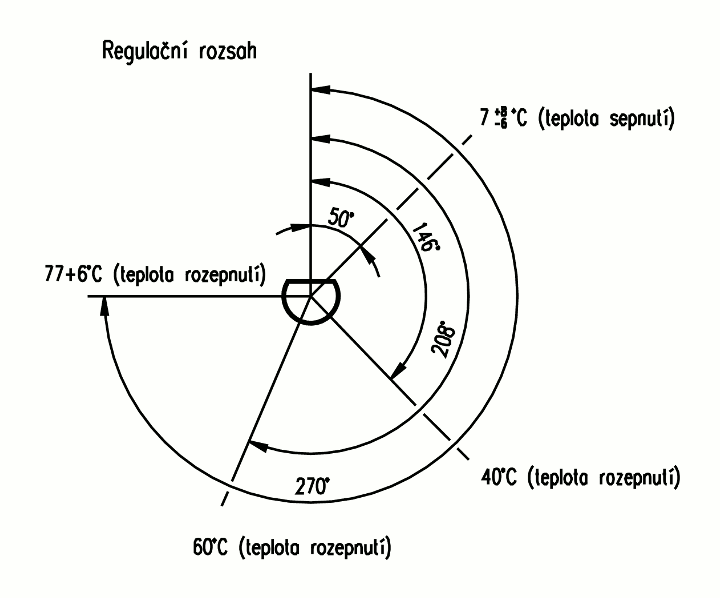

| Control range | 7 ÷ 77 °C |
| Variation of maximal cutout temperature | ±6 °C |
| Switching difference | 2-5 K |
| Rated current | 16 (2,6) A |
| Rated voltage | 240 V ~ |
| Temperature range (switching unit) | 0 ÷ 150 °C |
| Max. temperature (sensor) | 90 °C |
| Protection | IP 00, built-in thermostat |
| Protection class | I |
| Guaranteed number of automatic working cycles | 100.000 |
| Capillary length | 500 mm |
| Min. radius of capillary bend | Rmin = 5 mm |
| Connecting terminals | flat pins 6,3 x 0,8 in accordance with ČSN EN 61210 |
Product is VDE certified.
Type designation
| Type |
Control range [°C]
|
Design
(break./switch.) |

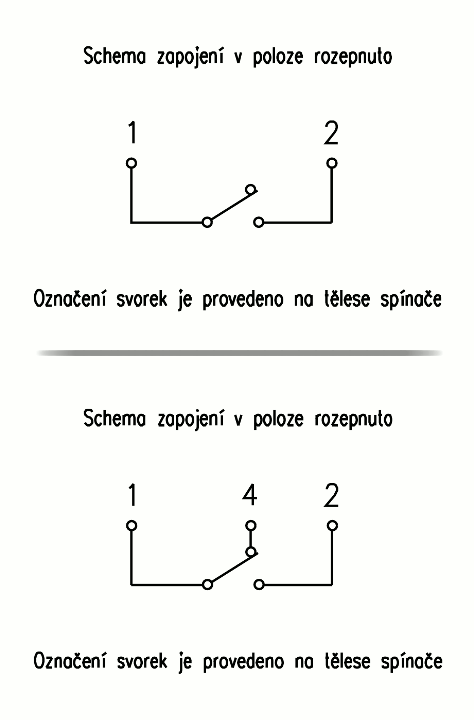

No. of terminals
|
Design
(straight/angular) |
Earthing terminal
|
| 8803.02 |
7-77
|
breaking
|
2
|
straight
|
yes
|
| 8803.02 U |
7-77
|
breaking
|
2
|
angular
|
yes
|
| 8803.021 |
7-77
|
switching
|
3
|
straight
|
yes
|
| 8803.021U | 7-77 |
switching
|
3
|
angular
|
yes
|

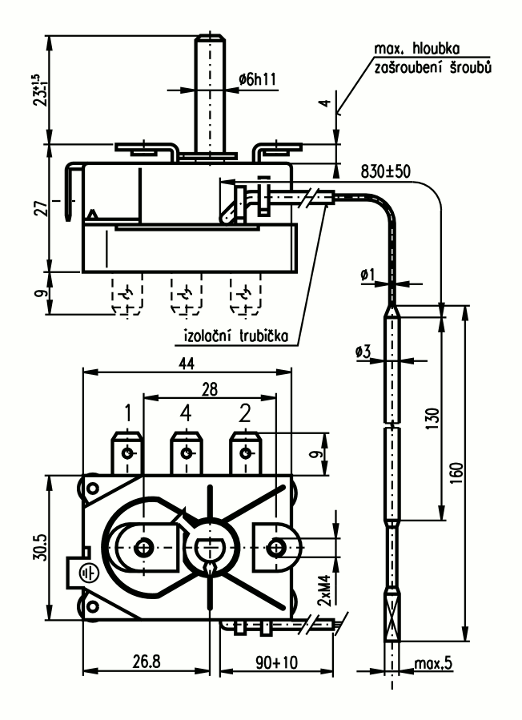

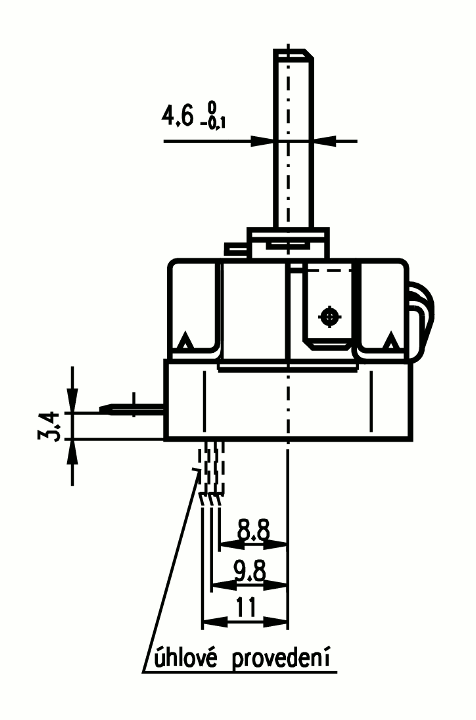

Dimensional drawings
Photos of the product
