Capillary thermostat RT 8824
Description
The RT 8824 is a two-pole capillary temperature controller based on the principle of liquid dilation. The RT 8824 consists of two basic parts, a switching unit and a capillary temperature sensor. There is a protective ground pin on the housing. The user can set the regulated temperature within the control range.The RT 8824 is mounted with two M4 screws.
Advantages
- Variable positioning and rotation of the sensor independently of the position of the switching device
- Possibility to mount the switching unit in any position
- Possibility to bend the capillary according to the mounting conditions
- The system has no power consumption of its own
- Low operating and maintenance costs compared to electronic systems
Technical data
| Control range | -15°C to 310°C |
| Accuracy of max. expansion temperature setting | ±20°C |
| Setting accuracy at 90°C | ±10°C |
| Switching difference | 4-10 K |
| Rated current | 1 A |
| Rated voltage | 240 V |
| Temperature limits around the switchgear | 0°C - 85°C |
| Max. temperature (sensor) | 330°C |
| Protection | IP 00, RT is built-in |
| Protection class | I |
| Lifetime | 100 000 working cycles |
| Capillary length | 1 550 mm |
| Min. radius of capillary bend | Rmin = 5 mm |
| Connecting terminals | Flat pins 6,3 x 0,8 mm according to ČSN EN 612 10 |
The operating range can be shifted to lower temperature by agreement with the manufacturer. Further information can be obtained directly from the manufacturer.
Overview of type desingation
| Type | Operating temperature range [°C] | Design (break./switch.) |
No. of terminals | Desing (straight/anglular) |
Ground pin |
| 8824 | -15 to 30 | Switching | 6 | Angular | Yes |
Technical drawings
Files to download

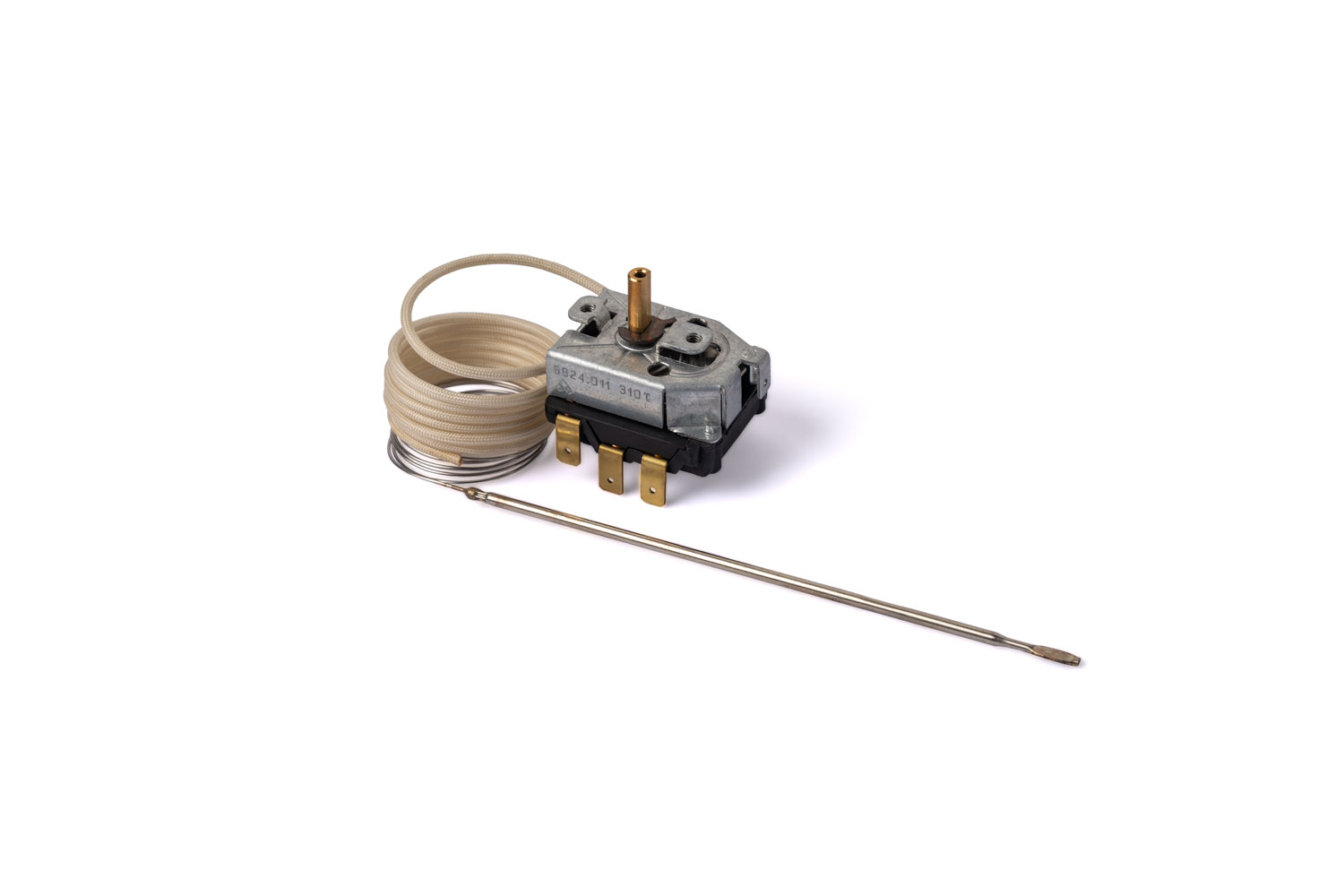

Catalogue sheet RT 8824Photos of the product
