Capillary thermostat RT 8801
Description
Capillary thermostat RT is a single-pole temperature regulator based on the principle of liquid dilatation. It consists from two basic parts: switching unit and capillary temperature sensor. There is a protective earth pin on the cover. Regulated temperature can be user set in control range. Installation is made by two M4 screws.
Advantages
- variable location of temperature sensor in relation to position of switching unit
- switching unit can be installed in any position
- capillary can be bent according to installation need
- no consumption of electrical power
- low operating and servicing costs
Technical data
| Control range | 0 ÷ 40 °C |
| Variation of maximal cutout temperature | ±2 °C |
| Switching difference | 1-3 K |
| Rated current | 16 (2,6) A |
| Rated voltage | 240 V ~ |
| Temperature range (switching unit) | 0 ÷ 150 °C |
| Max. temperature (sensor) | 50 °C |
| Protection | IP 00, built-in thermostat |
| Protection class | I |
| Guaranteed number of automatic working cycles | 100.000 |
| Capillary length | 1 000 mm |
| Min. radius of capillary bend | Rmin = 5 mm |
| Connecting terminals | flat pins 6,3 x 0,8 in accordance with ČSN EN 61210 |
Product is VDE certified.
Type designation
| Type |
Control range [°C]
|
Design
(break./switch.) |
No. of terminals
|
Design
(straight/angular) |
Earthingterminal
|
| 8801.01 |
0-40
|
breaking
|
2
|
straight
|
yes
|
| 8801.01 U |
0-40
|
breaking
|
2
|
angular
|
yes
|
| 8801.01 1 |
0-40
|
switching
|
3
|
straight
|
yes
|
| 8801.01 1U | 0-40 |
switching
|
3
|
angular
|
yes
|

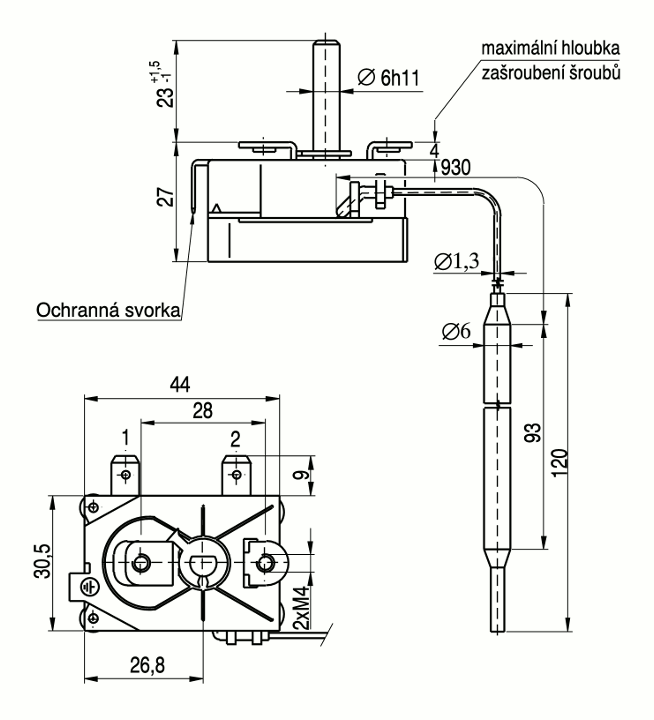

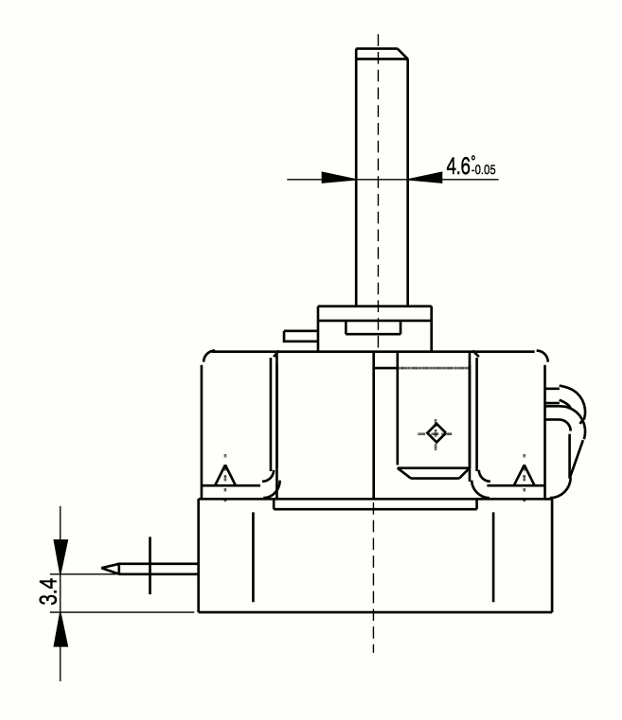

Dimensional drawings
Photos of the product
