Technical thermometer straight DTR, angular DTU
Description
Thermometers can be used for temperature measurement in any position. Thermometer head can be placed in environment with temperature range -30 °C to +80 °C. The maximum permissible deviation is ±2,5 % scale range for all versions. Measured temperature must not exceed maximum scale range.
Thermometers are manufactured with various stem lengths as shown in the table. The whole measuring system must be placed in measured environment to ensure accurate measurement. Recommended installation depth P is 100 mm, or the whole length of shorter stems. In some cases, especially at pressure bigger than 0,3 MPa or in liquid environment, stem must be placed in thermometer well. Maximum pressure when well is used is 0,6 MPa. Thermometers with range 0 °C - 350 °C and 0 °C - 450 °C can be used only with thermometer well.
Thermometer consists from plastic head and stem. Stem can be made from stainless steel or non-alloy steel call 11 (length up to 400 mm), or from made of non-alloy steel only (length 630 mm or bigger). Stem from length 630 mm is coated with protective varnish. Scale is protected by glass.
Technical data
| Type |
Scale division
[°C]
|
Scale range
[°C]
|
Measuring range
[°C]
|
Stem length ... L [ mm ]
|
||||||||
|
ø d = 8 mm (stainless (AKVS))
|
ø d = 12 mm (steel cl. 11)
|
|||||||||||
|
60
|
100
|
160
|
250
|
400
|
630
|
1000
|
1500
|
|||||
|
DTR
|
1
|
-30 to 50
|
-20 to 40
|
x
|
x
|
x
|
x
|
x | x | x | x | |
|
1
|
0 to 120
|
20 to 100
|
x
|
x
|
x
|
x
|
x | x | x | x | ||
|
2
|
0 to 200
|
20 to 180
|
x
|
x
|
x
|
x
|
x | x | x | x | ||
|
5
|
0 to 350
|
50 to 300
|
x
|
x
|
x
|
x | x | x | x | |||
|
10
|
0 to 450
|
50 to 400
|
x
|
x
|
x
|
x | x | x | x | |||
| DTU |
1
|
-30 to 50
|
-20 to 40
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
||
|
1
|
0 to 120
|
20 to 100
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|||
|
2
|
0 to 200
|
20 to 180
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|||
|
5
|
0 to 350
|
50 to 300
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|||
|
10
|
0 to 450
|
50 to 400
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|||
Ordering
Thermometer type, quantity, scale range, stem length, stem material must be specified in order. Accessory design (thermometer well, adjustable socket) must be also specified if required.

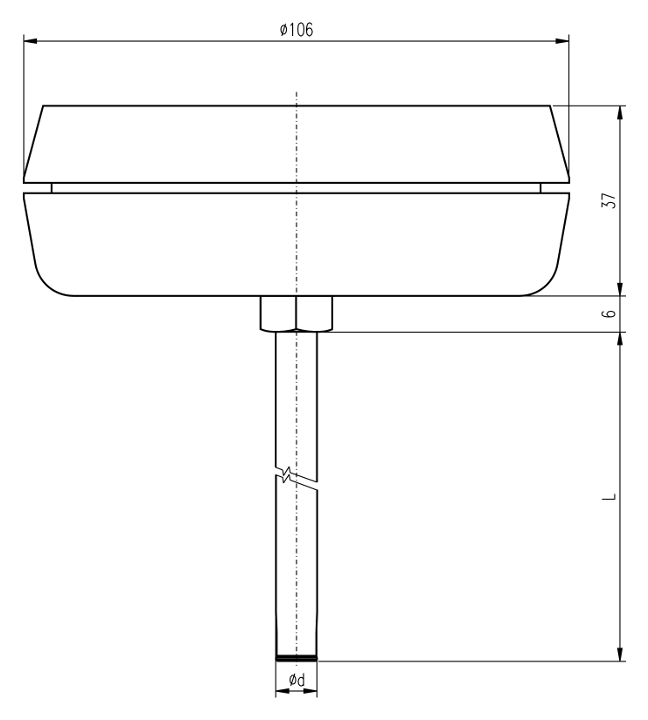

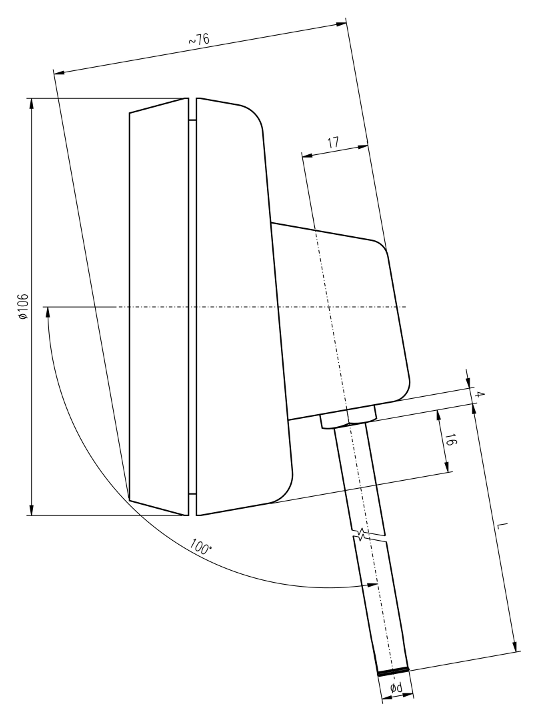

Dimensional drawings
