Thermometer stainless well

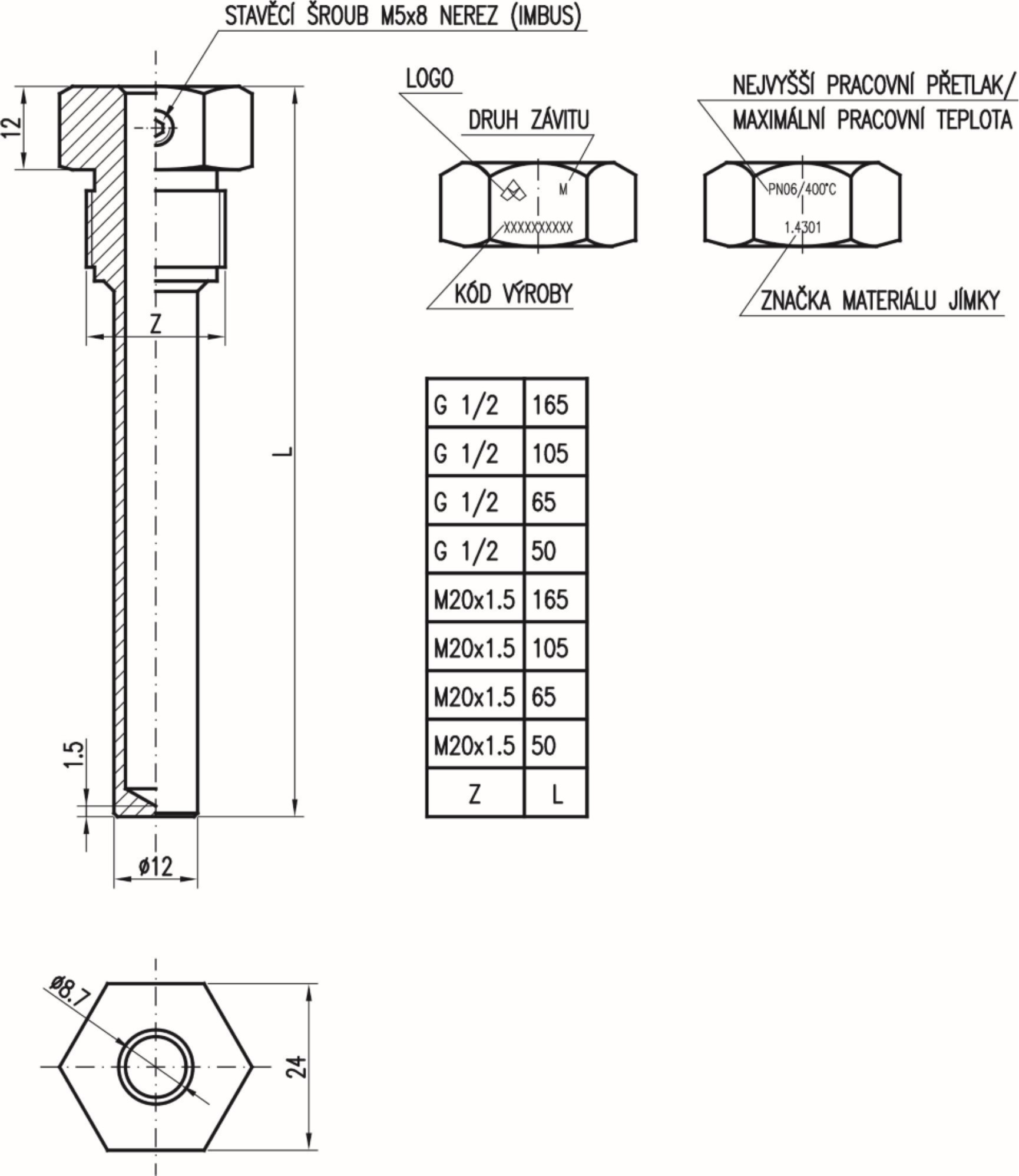

Thermometer wells are used to protect stem of a thermometer against influence of environment at a place of installation. Well is used to be built into a designated device (e.g. electrical boiler, water heater). Installation of the well is done by sliding a stem of thermometer into a well of a specified size and securing by a screw M5 x 8 stainless (socket head). Maximum working pressure of wells is PN 6 according to ČSN 130010 (possible delivery of wells with up to PN 40 per request). Except maximum working pressure also maximum working temperature is marked on a well.
Weld-on pieces are addition to wells.
TECHNICAL DETAILS
Weld-on pieces are addition to wells.
TECHNICAL DETAILS
| Stem length | 45, 60, 100, 160 mm |
| Well length | 50, 65, 105, 165 mm |
| Material (standard) | AISI 304 (suitable for food industry) |
| Material (variations per request) | AISI 316, 136L, 316Ti and others |
Files to download
Catalogue sheetPhotos of the product
